NX-C2 | Inline Automatic X-Ray Counter

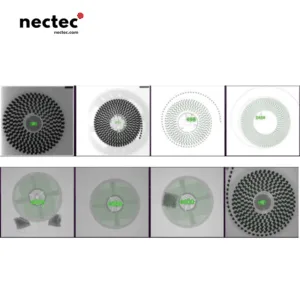

The NX-C2 is a fully automatic X – Ray point system. It is applicable to all resistive, capacitive, and iC materials, enabling rapid counting and inventory of various trays. It features fast and high – precision chip counting to reduce labor costs, non – contact counting to avoid chip damage or loss, a feeding method with 1 – 4 stations for selection, a six – axis robot arm with machine vision for automatic labeling, material grabbing (more flexible, efficient, and with high recognition accuracy, capable of covering original labels as small as 0.01mm), the ability to connect to AGV loading for unmanned loading, support for connection with ERP, MES, and WMS systems, and an advantage in space occupation as it has no NG warehouse.
- Description
Description
Functions and Features
Non-destructive Counting: Adopts non-contact counting method, ensuring no chip damage or loss during the process.
Flexible Feeding Options: Offers a choice of 1-4 stations for the feeding method, catering to various operational needs.
Intelligent Material Handling: Equipped with a six-axis robot arm integrated with machine vision, enabling automatic labeling and material grabbing. It is more flexible and efficient compared to traditional modules, featuring high recognition accuracy and the ability to cover original labels as small as 0.01mm.
Unmanned Loading Capability: Can be connected to AGV loading, realizing unmanned loading and enhancing automation.
Efficient System Connectivity: Supports connection with ERP, MES, and WMS systems, facilitating seamless data flow and improving overall management efficiency.
Space-saving Design: The equipment without an NG warehouse provides advantages in occupying space, making it more suitable for environments with limited space.
specification
Note: The above information only represents general descriptions and characteristics, which may change with technological advancement and equipment upgrades. Specific parameters are subject to the final agreement. | ||
Item | Model | SRL-002IN |
X-Ray Tube | Tube voltage | 80KV |
Tube current | 150uA | |
Flat panel detector | Imaging area | 427mm*427mm |
Pixel size | 48um-75um about48um-75um | |
Pixel matrix | 3072*3072 Pixels | |
Test items and | Maximum size of the disk | 380mm |
Disk minimum size | 180mm | |
Maximum thickness of disk | 85mm | |
di mensions | Disk minimum thickness | 3mm |
Compatible with a minimum element | 300/H300 disc/H | |
Count time | 0100599.8% 020199.9% | |
Count accuracy | 01005 Up to 99.8% 0201 up to 99.9% |
