High-Speed SMT Reel X-Ray Counter for
Accurate Material Detection
High-Speed SMT Reel X-Ray Counter – Precision, Speed, and Dependability in Every Count!
Our advantages
Count the electronic components on the reel accurately
Automatic counting saves time and improves efficiency
Uses non-destructive X-ray technology to count without opening packages
Various tray compatibility (7-17 inches, JEDEC trays, moisture-sensitive bags) for diverse material types
ERP, MES, and WMS Integration to streamline operations, improve traceability, and optimize data management.
Application field
- Integrated Circuit & Electronics Manufacturing
- New Energy Battery Production
- Surface-Mount Technology (SMT)
- BGA & SMT Assembly Services
- LED Manufacturing
- PCB Production and Assembly
Features and Capabilities
- Designed for fast and accurate counting of SMT reels to enhance inventory management and production efficiency.
- Non-contact, high-precision counting ensures no damage or loss of components during the process.
- Varioustray compatibility (7-17 inches, JEDEC trays, moisture-sensitive bags) for diverse material types.
- Equipped with advanced anti-interference algorithms, delivering precise results within just 8 seconds.
- ERP, MES, and WMS Integrationto streamline operations, improve traceability, and optimize data management.
- Supports automation operations machine vision for labeling, sorting, and material handling with high efficiency.
- Space-saving design with an intuitive interface, enabling easy operation and maintenance.
- Provides real-time counting results and data export to ensure smooth production workflows and accurate inventory tracking

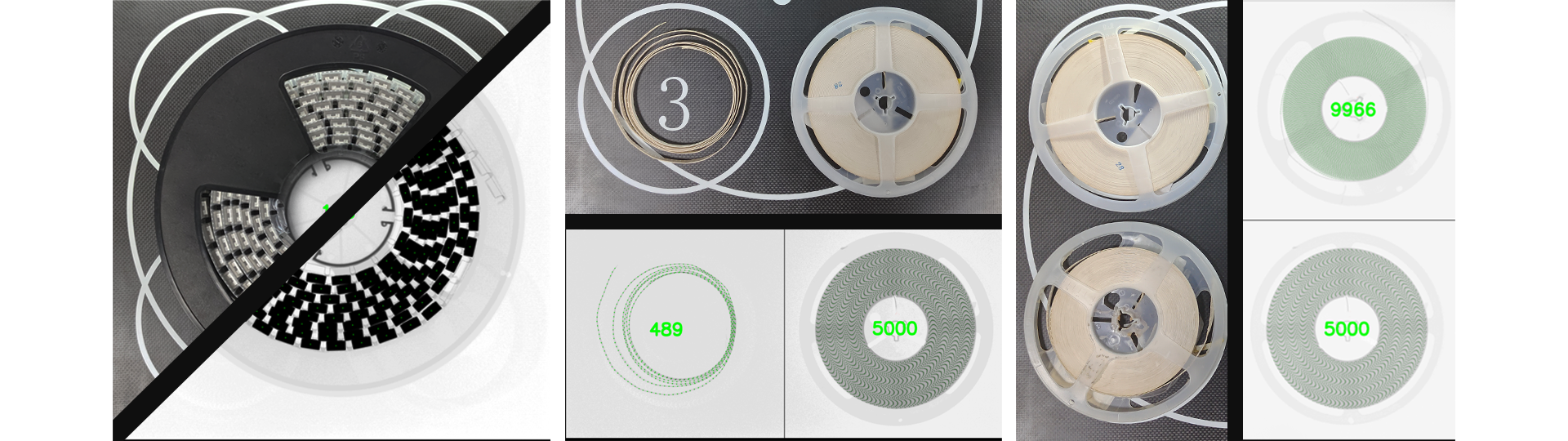

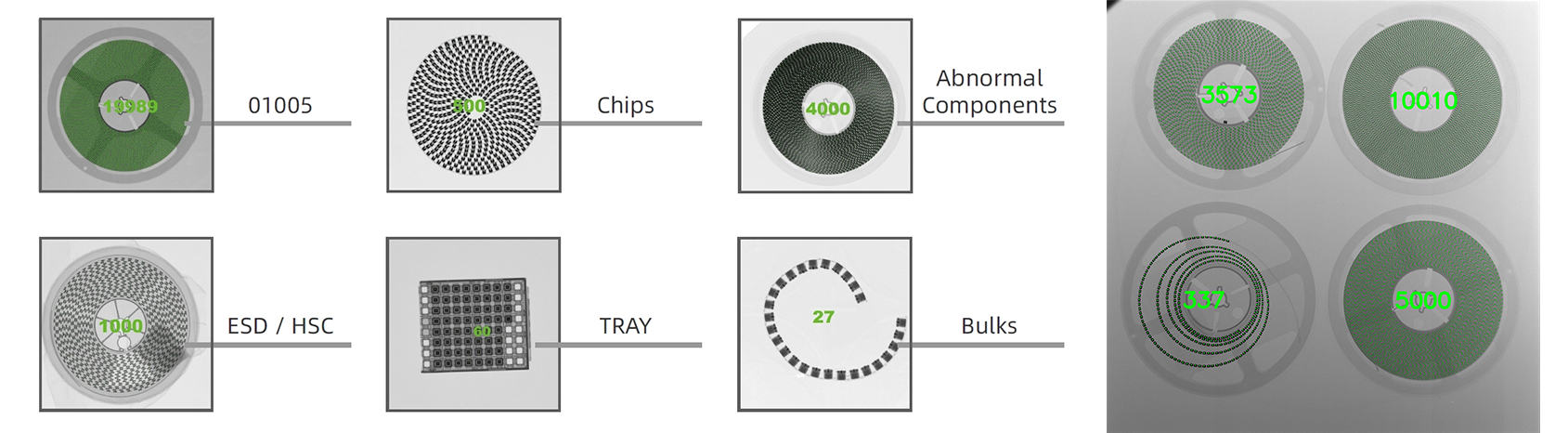

Detection graph effect

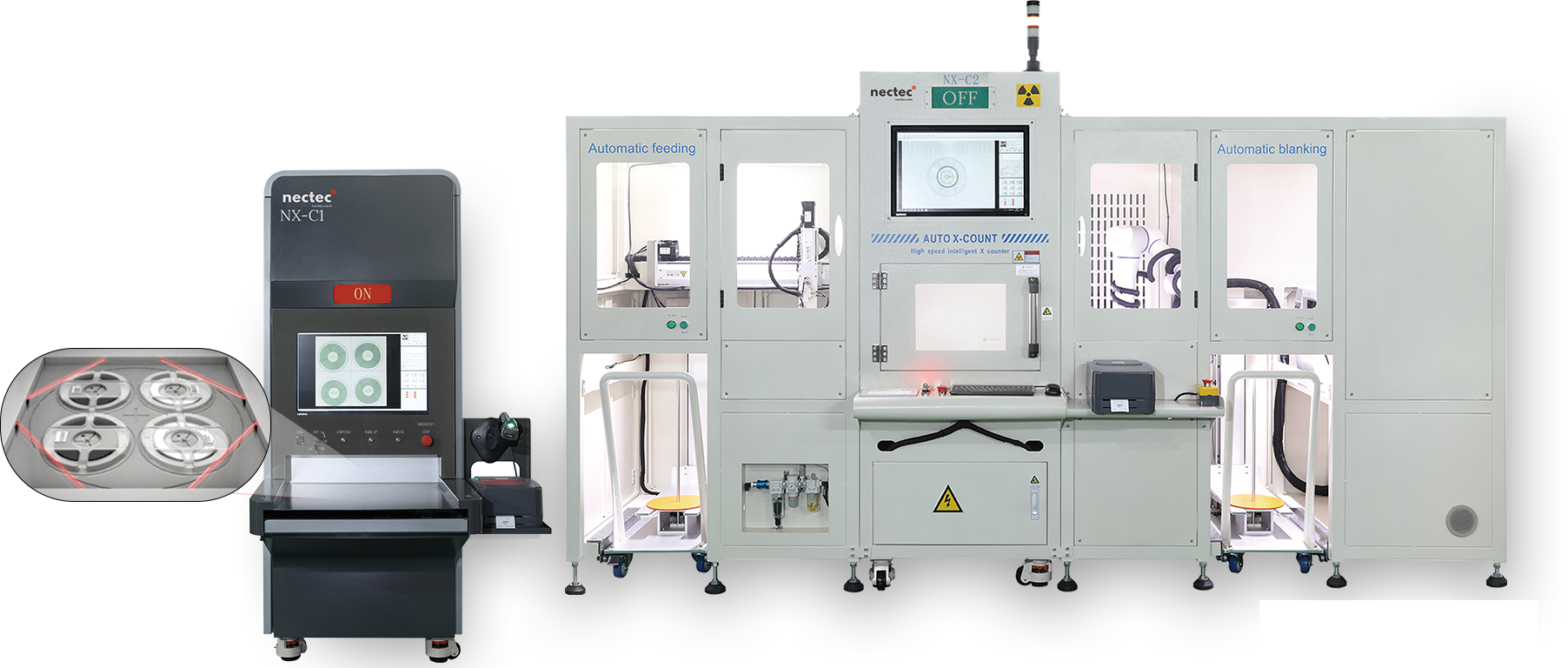

Offline X-Ray Counter
- Manual placement with automated pallet handling
- Rapid counting (about 8 seconds per single disc or 1-4 disc)
- Manual loading with flexible tray compatibility
- High-precision with non-contact methods.Achievable accuracy
- of 99.8% for small components
- Supports connections with ERP and WMS systems
- Compatible with 7-17 inch trays and moisture-sensitive bags
- Simplified operation for personnel
- Requires less space and more labor cost.
- Suitable for batch processing and smaller runs
Online X-Ray Counter
- Fully automated, suitable for continuous production
- Fast counting (≤10 seconds per single disc or 1-4 disc)
- Supports automated loading via AGVs
- High-precision, non-contact counting. Achievable accuracy
- of 99.9% for small components
- Seamlessly integrates with ERP, MES, and WMS
- Handles various tray sizes and types
- Advanced robotics and machine vision for automation
- Requires more space and less labor cost.
- Ideal for high-volume, unmanned operations
