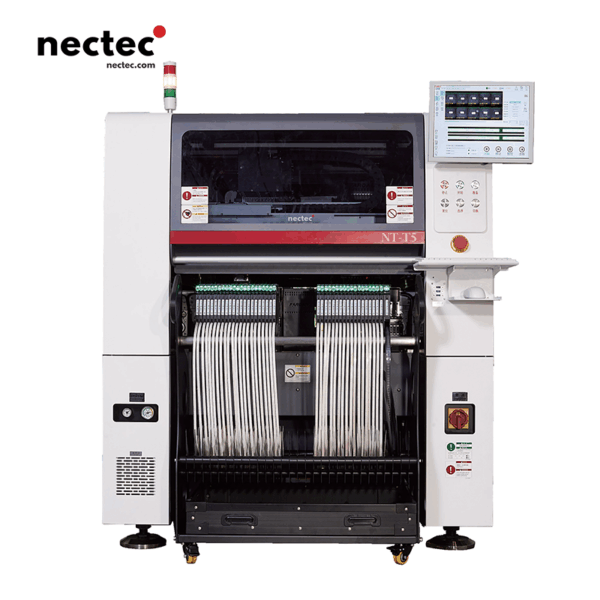

NT-T5 | High Speed Pick & Place Machine
Introducing the NT-T5, Nectec’s top-tier high-speed placement machine. Designed for excellence in the SMT industry, it achieves a remarkable placement speed of 84,000 CPH with dual-arm combination placement, ensuring unmatched precision and efficiency.
- Description
Description
Speed and Precision
With its dual-arm dual-drive method and dual-track configuration, the NT-T5 ensures high-speed, independent, and alternating placement, optimizing production efficiency and quality. It handles a wide range of components with ease, from 0201 micro devices to larger components, maintaining an accuracy of ±0.035mm.
Advanced Technology
Equipped with dual linear motors for the XY axis and a high-speed 10-head placement system, the NT-T5 guarantees minimal wear and high precision. The high-precision multifunctional head supports components up to L40W40H25mm, making it versatile for various manufacturing needs.
Flexible Configurations
The NT-T5 features smart systems like ATC automatic nozzle change, real-time vacuum detection, and versatile feeding options including tray, lightweight electric, and tube feeders. Additional intelligent functions such as QR code-based quick switch model and substrate bending detection enhance operational flexibility and efficiency.
XY Axis Configured with Linear Motors
The XY Axis Adopts Advanced Dual Linear Motor Configuration in the Industry, Which Features Less Wear, Higher Precision, and Longer Service Life. The Dual Linear Motor Configuration Enables Higher Production Efficiency While Ensuring Equipment Stability.
High-speed Placement Head
Equipped with a New Lightweight 10-head Highspeed Placement Head with Flying Cameras, It Can Handle 0201 Microchips to L12*W12*H6.5MM Regular Components. The Z-axis of the Placement Head Uses High-precision Linear Motors to Ensure Component Placement Accuracy of
±0.035mm, Achieving Highefficiency Placement.
High-precision Multifunctional Head
Equipped with the New 0624R High-precision Placement Head, the R-axis is Controlled by a High-precision Servo Motor. It Can Handle Imperial 0201 Microchips to L40*W40*H25mm Large/Irregular Components, Achieving High-precision and Fast Placement.
specification
Model | Category | NT-T5 | |
Specifications | Mounting head module | Both arms | Both arms |
Track module | Single / Dual-track | Single / Dual-track | |
Number of nozzles | High speed mounting head (10 + 10 head) | Multifunctional Mounting Head (6 + 6 Head) | |
Equipment size | Length x Width x Height | 1380*2050*1550mm | 1380*2050*1550mm |
Weight | weight | Approx 2560KG | Approx 2560KG |
Electrical Specifications | Gas source | 0. 5MPa, 300L/min | 0. 5MPa, 300L/min |
Power | AC380/420/480V,5KW | AC380/420/480V,5KW | |
Object Substrate | PCB Size | Monorail: Min.50* 50 mm Max. 510* 510 mm Double track: minimum 50 * 50 mm,222 mode: maximum 510* 280 mm (can be redesigned to mount 1200 mm) | Monorail: Min.50* 50 mm Max. 510* 510 mm Double track: minimum 50 * 50 mm,222 mode: maximum 510* 280 mm (can be redesigned to mount 1200 mm) |
PCB thickness | 0.5-9.0mm | 0.5-9.0mm | |
PCB Fixed Mode | Pneumatic lifting platform, upper and lower splint | Pneumatic lifting platform, upper and lower splint | |
Mounting Capacity | Optimum placement speed | 84000CPH | 38000CPH |
Chip placement accuracy (CPK) | ±0.035mm(XYZ) | ±0.035mm(XYZ) | |
CPK≥1.0 | CPK≥1.0 | ||
Corresponding Element Range | Flying camera: min.inch 0201,max.L13 * W13 * H6.5mm | —— | |
Fixed camera: min.inch 0201, max. L40* W40 *H13mm | Fixed camera: min.Inch 0201, max.L40* W40* H25mm | ||
Vision System | MARK Camera Field of View | L20mm*W20mm | L20mm*W20mm |
MARK Camera Type | Area Array 500W | Area Array 500W | |
Component Camera Type | Flying camera | —— | |
Fixed camera (optional) | Fixed camera | ||
Feeding System | Trolley | Not support | Not support |
Feeder | Electric feeder | Electric feeder | |
Number of feeders carried | 100 stations (8mm) | 100 stations (8mm) | |
Coil material feeder | Tape: 8/12/16/24/32/44/56mm | Tape: 8/12/16/24/32/44/56/72/88mm | |
Pipe material feeder | Number of individual vibration feeders | Number of individual vibration feeders | |
4-20mmx3 tube | 4-20mmx3 tube | ||
30-40mmx2 tube | 30-40mmx2 tube | ||
40-50mmX1 Tube | 40-50mmX1 Tube | ||
TRAY (optional) | — | TRAY cabinet equipped with:L323mmxW136mmXH750mmX20 disk | |
Control Part | X-axis | High precision linear motor + grating ruler | High precision linear motor + grating ruler |
Y-axis | Double-drive linear motor + grating ruler, full closed loop control | Double-drive linear motor + grating ruler, full closed loop control | |
Z-axis | High precision linear motor | High precision linear motor | |
R-axis | High precision servo motor | High precision servo motor | |
MES System Docking | MES acquisition | Support TCP /IP Communication Protocol | Support TCP /IP Communication Protocol |
MES Upload | Support 2D code / barcode recognition / binding upload MES | Support 2D code /barcode recognition / binding upload MES | |
