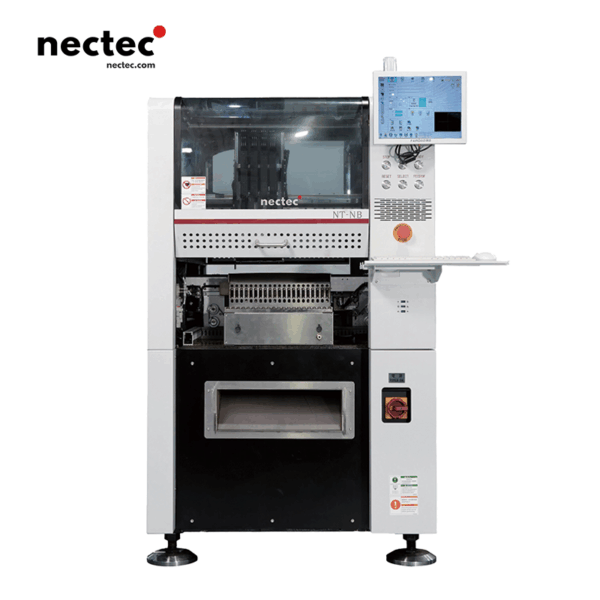

NT-NB | Odd Shape Pick & Place Machine
Our Odd Shape Pick and Place Machines utilize built-in vacuum pumps and magnetic levitation motion control to adapt to all kinds of odd-shaped components. Whether you are dealing with small, intricate parts or larger, more complex components, our machines ensure precise placement at speeds up to 8000 CPH, maintaining consistent quality and performance.
- Description
Description
Flexibility
High-speed / Multi-function Placement heads are configured according to customer component types.
Universal Compatibility With Diverse Feeders
Universal compatibility with a variety of feeders such as 60mm and 100mm, which are suitable for various production needs.
Suitable For Odd Shape Components
Suitable for labels, adhesives, foam, conductive adhesive/cloth, Mylar, copper foil, thermally conductive silicone, graphite sheet, 3D steel sheet, headphone components, mobile phone case materials, glass panel texture film, battery cover, 3C products and Accessories.
High Precision Reliability
Imported XY drive and magnetic levitation linear motor with grating ruler.
High Precision Reliability
Imported XY drive and magnetic levitation linear motor with grating ruler.
specification
Model | Category | NT-NB |
Size | L*W*H | 900*1420*1550mm |
gross weight | 1000KG | |
Min and Max PCB size | Min50*50mm,max330*420mm (option 450*500mm) | |
PCB thickness | 0.5MM-5mm | |
PCB Fixture method | Upper and lower splint | |
Operating System | Windows system | Windows7/10 |
Control System | Self Developed Software | |
Display input device | Touch screen + keyboard, mouse | |
Placement | Mounting speed | 3000CPH-8000CPH |
Number of placement heads | 4/8 heads | |
Mounting accuracy | +0.035mm(excluding material tolerance) | |
Mounting height | 0.1-8MM (automatic conversion, 30mm optional) | |
Mounting angle | 0-360degrees | |
Size of mountable Components | Standard rnodels are applicable:1.5*2r-90*38mm | |
Applicable to enlarged models:10mm*5mm-180mm*38mm | ||
Almost all cold paste products can be attached, including adhesive tape film, special-shaped | ||
reinforcement, 3D steel sheet, label, foam, glass and special-shaped components, etc. | ||
Visual System | Camera ldentificaton | Linear scan camera & area scan camera |
Transmission System | Transmission direction | left-right, right-left, left-left, right-riaht |
delivery method | automatic | |
Converyor height | 900±20mm | |
Electrical Specifcations | air pressure | 5.0KG comes with vacuum pump |
input power | AC 380/420/480V 50hz | |
power | 1.5KW | |
Use environment | 24.5°C± 2°C | |
Feeding System | Number of feeders that can be placed | 2 feeder for 100mm wide 4 feeder for 60mm wide SMT standard feeder can be 21 stations |
