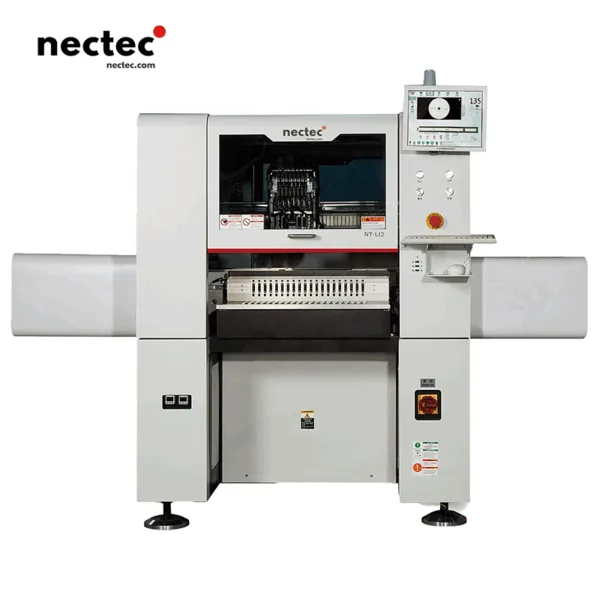

NT-L12 | LED Pick & Place Machine
The NT-LT is Nectec’s innovative lens mounting machine, designed for high-speed and high-precision applications in TV backlights, LED lighting, and more. As a leader in high-end smart SMT machines, Nectec ensures exceptional performance and increased production capacity by nearly 50%.
- Description
Description

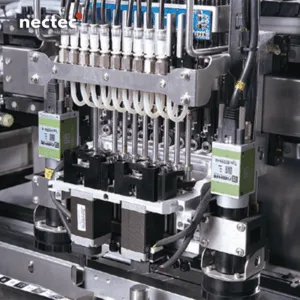

High-speed Placement Head
12 placement heads works simultaneously to increase the production capacity by nearly 30% compared with the traditional configuration,
and can achieve the best production capacity of 70,000CPH

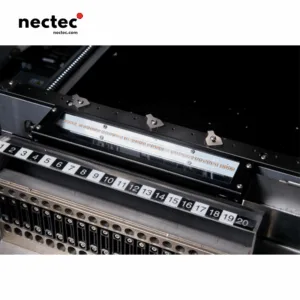

Moveable PCB transmission
Movable PCB transmission system reduces the waiting time for board transfer and optimizes the placement path.
Module camera
Adopt multiple identical independent identification configuration methods, which can identify multiple elements at high speed and synchronously.It effectively ensures the operating efficiency of the equipment.

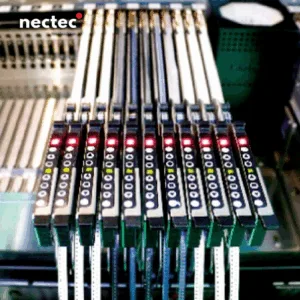

Electric Feeder
The electric feeder can realize 1/2/4mm pitch feeding to save equipment cost and improve component compatibility.

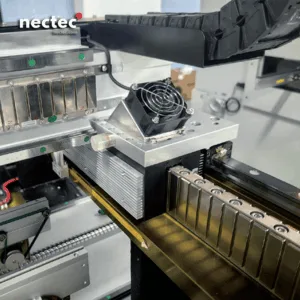

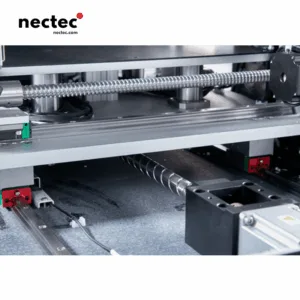

Precision XY Drive System
Featuring dual linear motors, the L3-600/L3-1200 provides higher precision and stability with minimal wear.
specification
Model | Category | NT-L06 | NT-L12 |
Name | Equipment Name | Lamp beads special placement machine | Lamp beads special placement machine |
Placement head | Mounting head model | 1212B | 1212B |
Nozzle spacing | 12mm | 12mm | |
Number of nozzles | High-speed placement head (12 heads) | High-speed placement head (12 heads) | |
Equipment size | Length x width x height | 1140*1500*1450mm | 2335*1500*1450mm |
The main components | Base | High-strength cast iron one-piece molding | High-strength cast iron one-piece molding |
X-arm beam | High-strength aluminum stretch forming | High-strength aluminum stretch forming | |
Control section | X-axis | Flat linear motor + grating ruler | Flat linear motor + grating ruler |
Y-axis | Dual motor linear motor + grating ruler | Dual motor linear motor + grating ruler | |
Z-axis | Closed loop stepping | Closed loop stepping | |
R-axis | Closed loop stepping | Closed loop stepping | |
Mounting capability | Optimal placement speed (IPC-9850) | 70000CPH | 70000CPH |
Chip placement accuracy (CPK) | 0,10mm(XYZ), CPK ≥ 1.0 | 0,10mm(XYZ), CPK ≥ 1.0 | |
Component size | Minimum size: 0201, maximum size: L12*W12 | Minimum size: 0201, maximum size: L12*W12 | |
Component thickness | 18mm | 18mm | |
Weight | weight | About 1600KG | About 1680KG |
Electrical Specifications | Gas source | 0.5MPa，150L/min | 0.5MPa，150L/min |
Power supply / Power | AC380/420/480V, 2.5KW | AC380/420/480V, 2.5KW | |
PCB conveyor system | Transfer plate track | Mobile single-section track (with transfer function) | Mobile single-section track (with transfer function) |
PCB size | Minimum 50*50mm, | Minimum 50*50mm, | |
Maximum 600*400mm, | Maximum 1200*400mm | ||
PCB Thickness | 0.4-9.5mm | 0.4-9.5mm | |
PCB fixing method | Pneumatic lifting platform, upper and lower clamps | Pneumatic lifting platform, upper and lower clamps | |
Feeding system | Number of feeders | 37 stations (8mm) | 37 stations (8mm) |
MES system connection | MES Collection | Support TCP/IP communication protocol | Support TCP/IP communication protocol |
MES Upload | Support QR code / barcode recognition / binding upload MES | Support QR code / barcode recognition / binding upload MES | |
Optional accessories | Optional accessories | Offline loader / rear button panel | Offline loader / rear button panel |
