Description

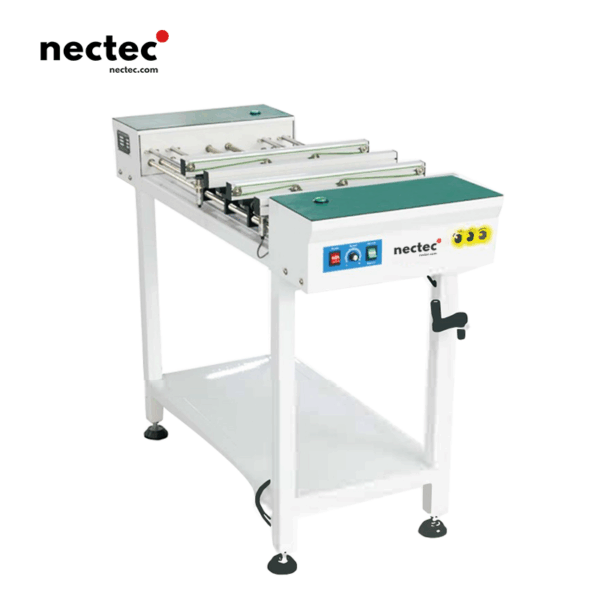

Industrial-Grade Structural Integrity

• Reinforced Stainless-Steel Construction: Fabricated from laser-cut 304-grade stainless steel with 1.5mm thickness, providing exceptional resistance to mechanical stress and chemical corrosion in flux-intensive environments. Tungsten-balanced base eliminates harmonic vibrations during high-speed operation.

• Dual-Track Precision Alignment: Independently adjustable rails maintain ±0.1mm parallelism for simultaneous processing of two PCBs (up to 330×250mm each), eliminating cross-track interference during 0.5–20 M/min transfers.

Ergonomic Process Optimization

• Operator-Centric Workstation: Unified 900±20mm transport height with 15° angled control panel placement reduces cervical strain during extended inspections. Knee clearance zones (≥500mm depth) accommodate seated operations.

• ESD-Safe Conveyance: Carbon-impregnated round/flat belts maintain surface resistivity at 10⁶–10⁹ Ω, preventing electrostatic discharge damage per ANSI/ESD S20.20.

Adaptive Configuration System

• Scalable Length Architecture: Modular segments support 500mm (CY-250DR) to 1000mm (CY-330DR) lengths, adapting to space-constrained or high-throughput lines.

• Multi-Tier Tray Configuration: Tool-less adjustable trays (1–3 tiers per rail) enable simultaneous staging of diverse PCB panels, supporting mixed-product runs without downtime.

Intelligent Motion Control

• Synchronized Dual-Drive System: Independent stepper motors per rail with closed-loop feedback enable:

  • ±0.5% velocity stability across 0.5–20 M/min range

  • Differential speed profiles for rigid/flex PCB handling

  • Auto-compensation for panel warpage

• SMEMA-Integrated Automation: 24V I/O signaling coordinates with AOI/SPI equipment for real-time track selection based on defect status. RS-485 connectivity supports MES data logging.

Maintenance-Optimized Design

• Hot-Swappable Components: Tool-released belt tensioners and slide-out trays enable <5-minute service interventions.

• Corrosion-Resistant Hardware: Electropolished surfaces and sealed bearings withstand 60°C ambient temperatures near reflow processes.
