NX-E1 | Electronics X-ray Inspection System

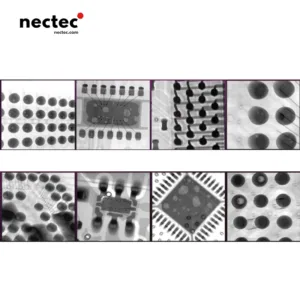

The NX-E1 machine is designed for detecting welding defects in electronic components. It specializes in inspecting PCB, SMT assembly, IC packaging, BGA, CSP, semiconductors, etc. Equipped with a sealed X – ray tube (90kV, 200uA) and 85um pixel FPD, it achieves 5um detail resolution for precise defect identification.
- Description
Description
Functions and Features
X-Ray Tube Setup：Utilizes sealed tube style X – ray tube, same as FX100 with 90kv tube voltage, 200uA tube current, 5um details resolution, air cooling mode, and 125 (times) geometric magnification time.
Flat Panel Detector Parameters：Flat panel detector has 85um pixel size, 15361536mm pixel matrix, 130130mm effective imaging area, 20 Fps, and 16bit AD conversion digits, matching FX100 in this aspect.
Motion Control Performance：Motion control system provides 400mm Axis X, 450mm Axis Y, 300mm Axis Z, and sample table rotates plus or minus 60 degrees for Axis R.
specification
Note：The above information only represents general description and characteristics， which may change with technological advancement and equipment upgrades. Specific parameters are subject to the final agreement. The above information only represents general description and characteristics， which may change with technological advancement and equipment upgrades. Specific parameters are subject to the final agreement. | ||
Item | Model | EXPB-002 |
X-Ray Tube | Tube Style | Sealed tube |
Tube voltage | 90kv | |
Tube current | 200uA | |
Details resolution | 5um | |
Cooling mode | Air Cooling | |
Geometric magnification time | 125(times) | |
Flat panel detector | Pixel size | 85um |
Pixel matrix | 1536*1536mm | |
Effective imaging area | 130*130mm | |
Fps | 20 | |
AD conversion digits | 16bit | |
Motion Control System | Axis X | 400mm |
Axis Y | 450mm | |
Axis Z | 300mm | |
Axis R | Sample table rotates plus or minus 60 degrees | |
