NX-EF | Electronics X-ray Inspection System

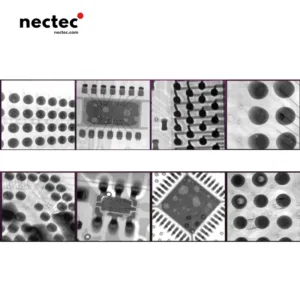

The NX-EF machine is applied to detect welding defects in electronic components. It is capable of inspecting PCB, SMT assembly, IC packaging, BGA (Ball Grid Array), CSP (Chip Scale Package), semiconductor and other components. With its advanced technology, it can accurately identify various welding issues, ensuring the quality and reliability of electronic products.
- Description
Description
Functions and Features
X-Ray Tube Configuration：Adopts sealed tube style X – ray tube, with 90kv tube voltage, 200uA tube current, 5um details resolution, air cooling mode, and 125 (times) geometric magnification time.
Flat Panel Detector Specs：Features flat panel detector with 85um pixel size, 15361536mm pixel matrix, 130130mm effective imaging area, 20 Fps, and 16bit AD conversion digits.
Motion Control Capability：Motion control system offers 340mm Axis X, 330mm Axis Y, 300mm Axis Z, and the fixture rotates 360 degrees for Axis R.
specification
Note：The above information only represents general description and characteristics， which may change with technological advancement and equipment upgrades. Specific parameters are subject to the final agreement. The above information only represents general description and characteristics， which may change with technological advancement and equipment upgrades. Specific parameters are subject to the final agreement. | ||
Item | Model | EXPB-001 |
X-Ray Tube | Tube Style | Sealed tube |
Tube voltage | 90kv | |
Tube current | 200uA | |
Details resolution | 5um | |
Cooling mode | Air Cooling | |
Geometric magnification time | 125 (times) | |
Flat panel detector | Pixel size | 85um |
Pixel matrix | 1536*1536mm | |
Effective imaging area | 130*130mm | |
Fps | 20 | |
AD conversion digits | 16bit | |
Motion Control System | Axis X | 340mm |
Axis Y | 330mm | |
Axis Z | 300mm | |
Axis R | The fixture rotates 360 degrees | |
