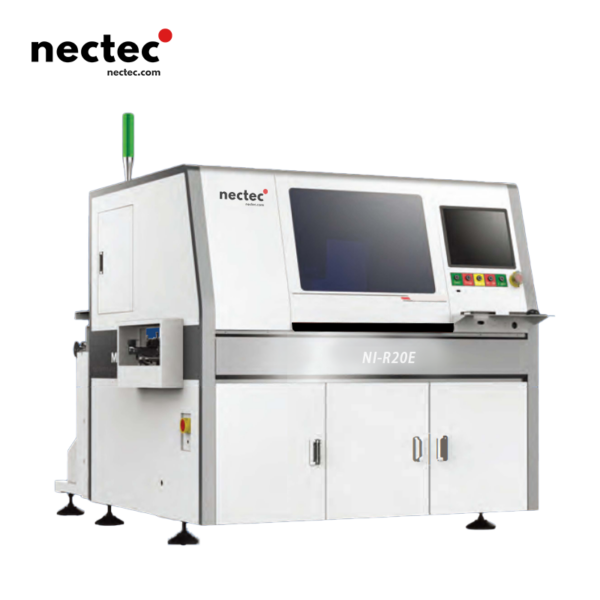

NI-R20E | Super Series Integrated Radial Insert Machine

The NI-R20E is a Series Integrated Radial Insert Machine, primarily designed for small-space, low-partition, and small-sized PCB manufacturing scenarios. It is tailored for customers with limited part numbers, limited workshop space, and small PCB sizes, effectively solving space constraints while ensuring insertion efficiency and accuracy. It is suitable for small- to medium-volume electronic manufacturing scenarios, such as PCB assembly for small power supplies, mini home appliances, and micro control boards.

Kategoria: Component Insert Machine

Opis

Opis

Multiple design, in order to meet the needs of different customers different pocesses.

1 4 2 4

NI-R20E is a small and nice model specially designed for customers with fewer material stations, small workshop space, and small PCB board size, which can effectively solve space problems, and the real insertion speed can ｢each 0.26 S/point (the best state) .

specyfikacja

Pozycja	NI-R20E
Theoretical Speed	Approx20,000 CPH
Insertion Direction	0°-360°，1° increment（-180°-180° Option）
Lead Span	2.5mm/5.0mm; 2.5mm/5.0mm/7.5mm;
	5.0mm/7.5mm/10.0mm; 2.5mm/3.5mm/5.0mm;
	2.5mm/5.0mm/7.5mm/10.0mm Selectable
Rozmiar płyty	Max 300*245mm
Process Height	900+20mm
Grubość płyty	0.79-2.36mm
Wysokość komponentu	Max 23mm ; Option 26mm
Component Style	Capacitor, Transistor, Triode, LED, Mini Switch, Resistor, Connector, Coil,Potentiometer,Fuse Block,Other Radial style taped components
Cut & Clinch Length	1.2/1.5/1.8mm (Selectable )
Clinch Angle	25°-45° External Bending ;
	3.5mm Lead Span Internal/External Bending Selectable
	3.5mm /
Component Stations	10—12 STD (15 STD Option )
Machine Dimension	Main Body :1800xW1600xH1700mm
Waga	Main Body : Approx 1100kg
Zapotrzebowanie na moc	AC220V,Single Phase,50/60Hz,1.5Kw
Power Protection	UPS()15 minutes duration after power cool-off ( Option )
Ciśnienie powietrza	0.6 Mpa
Air Consumption	0.3 M³/min
Environmental Temperature	20℃ ± 10°
Noise Level	Approx75 dB(A)
Clinch Module Movement	AC Servo Motor (Up,Down)
Tape Cutter	Single Stroke Cutting Feature

Station Feeding System	STD valve
Component Transfer Assemble （CTA）	Cylinder

Position Teaching	System wizyjny
	Multi Fiducial
Axis Driving System	AC Servo Motor
Data Input Style	USB Port (Excel Format)
Operation System	Chinese/English Interface (Windows® Platform) LCD Display
Operation Mode	Auto / Semi Auto / Manual
Component Density	High Density Insertion Style

Worktable Rotation	Conveyor Track
Board Inload	Conveyor Inload Left to Right (Selectable)
