Application of SMT processing technology in the Internet of Things (IoT): The key to driving smart life and industrial innovation.

In today’s rapidly changing technological environment, the Internet of Things (IoT) is reshaping the way we live our daily lives and industrial production. From smart devices in smart homes to factory automation systems, IoT applications are ubiquitous, providing users with unprecedented convenience and efficiency. Especially in the smart home scenario, whether it is a smart slightly controlled by a voice assistant or a smart door lock monitored remotely, the operation of these devices relies on high-performance intelligent technology and stable communication capabilities, aiming to improve the quality of life. In the industrial field, the emergence of the Industrial Internet of Things (IIoT) has made many traditional production processes more automated and precise, further promoting the improvement of production efficiency and optimal management of resources. That‘s why SMT (Surface Mount Technology) processing technology has become a key technology to promote the production of IoT equipment. The advantage of SMT is that it can achieve miniaturized designs and support the needs of high performance and low power consumption, which is crucial to the realization of IoT devices. With the advancement of technology, SMT not only improves product reliability and production efficiency, but also deepens the integration capabilities of various electronic components, thus providing a solid foundation for the development of the Internet of Things. In this article, we will dive deep into the discussion of close relationship between SMT processing technology and IoT, and analyze its actual benefits and future potential in various applications.

First, we want to discuss the relationship between SMT processing technology and IoT. In today’s rapidly developing technological environment, surface mount technology (SMT) is not only the cornerstone of electronic equipment production, but also a key technology driving innovation in Internet of Things (IoT) equipment. Through its high-density packaging capabilities, SMT allows designers to integrate more functions in a limited space to meet the needs of miniaturization and high performance. This is particularly evident in the application of various IoT devices. There are total of three key factors that can represent this relationship. First key factor is high-density packaging technology: it enables IoT devices to shrink in size while still maintaining high performance. For example, smart watches and other wearable devices often need to integrate multiple functions in a very small space, SMT can support the design of tiny components, so that these devices have a thinner appearance and more powerful functions. Second key factor is automated manufacturing: it gets benefits from the advantages of SMT and can improve the production speed and yield of IoT equipment. By automating the assembly process, labor costs can not only be reduced, but also product consistency and quality can be improved to meet the needs of large-scale production. Third key factor is functional integration capabilities: many IoT devices now require a combination of AI processing, sensors, and wireless communication modules. Through SMT technology, these components can be more tightly integrated into the PCB, optimizing performance and saving space. This not only provides greater flexibility for the functional development of the equipment, but also improves the overall performance of the equipment. In the Industrial Internet of Things, this correlation becomes even more critical.

The gradual development of automated production allows companies to flexibly respond to market changes, improve production efficiency, and then shape smarter production processes. As the transformation of the IoT industry accelerates, advances in SMT technology will undoubtedly further promote the expansion and enhancement of equipment functions. By deeply exploring the correlation between SMT processing technology and IoT, we can better understand the future trends of technology development and how the two can work together to promote innovation in various applications.

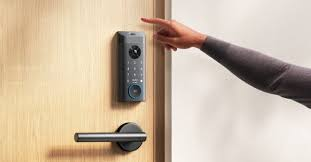

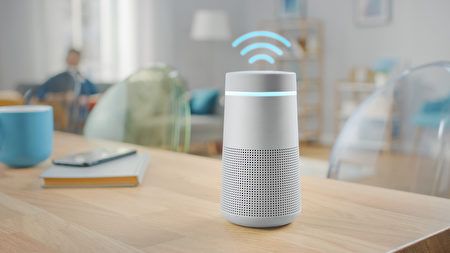

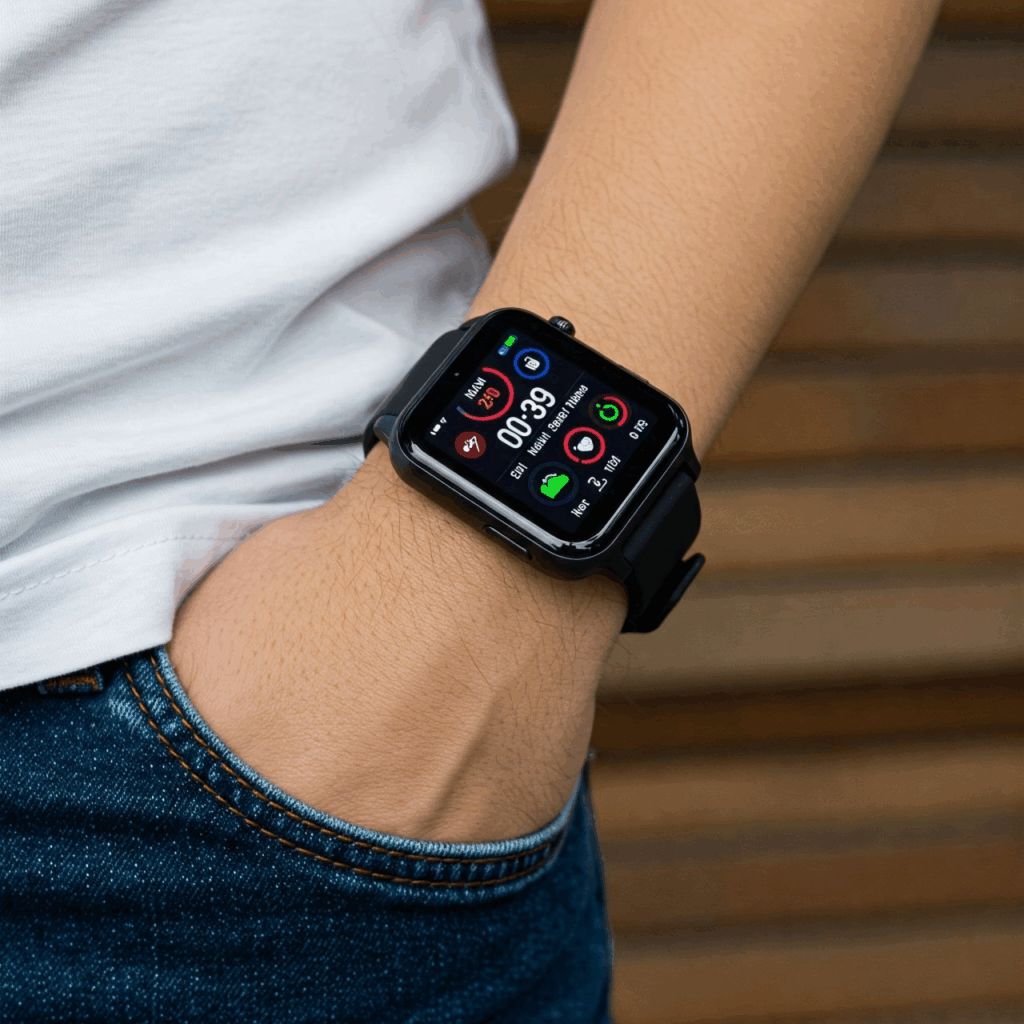

Secondly, we want to discuss the applications of SMT in IoT. The first notable application is smart home and wearable devices, it includes smart door lock: SMT technology supports miniaturization design, allowing wireless communication modules to be embedded in a smaller space, thereby providing users with a more convenient experience. The second is a smart slightly: Through chip integration of SMT technology, it not only improves Wi-Fi and Bluetooth functions, but also enhances the accuracy of AI voice control, allowing users to interact in a more natural way. The third is health monitoring equipment: Many fitness trackers and smart watches use SMT packaging low-power sensing chips to extend the battery life of the device and increase the frequency and convenience of use for users. The second notable application is industrial IoT (IIoT), it includes Industrial sensors: Sensors produced using SMT have high durability and low power consumption, which allows them to maintain stable performance in extreme industrial environments and improve monitoring accuracy. The second is edge computing equipment: SMT supports the packaging of high-performance computing chips, allowing IIoT equipment to have fast data processing capabilities, can respond instantly locally, reduce latency, and improve the efficiency of the overall system.

The third notable application is smart city, it includes smart transportation systems: such as low-power, long-distance communication modules in the Internet of Vehicles are produced with high efficiency through SMT, reducing the design space and enhancing signal stability. The second is environmental monitoring equipment: Use SMT technology to improve the weather resistance and stability of monitoring instruments, ensure accurate data transmission even in severe climates, and support urban environmental monitoring and management. At Nectec, our high-precision and high-speed SMT pick and place machines like NT-P5 and NT-T5 are all capable of mounting high-density chip components.

Thirdly, we want to discuss some advantages of SMT manufacturing in IoT. SMT technology has shown many advantages in the production of Internet of Things (IoT) equipment, making it one of the important technologies in the current electronics manufacturing industry. First of all, SMT helps to achieve miniaturization of equipment. Through high-density packaging technology, electronic components can be accurately placed on the printed circuit board (PCB), effectively reducing the space occupied by the circuit board and making the final product lighter. This feature is particularly important for the development of smart homes and wearable devices, as market demand generally moves towards miniaturization and portability. Secondly, SMT’s automated production process has significantly improved production efficiency and yield. Compared with traditional manual installation, SMT equipment can mount components at high speeds and significantly reduce the incidence of human error. For example, some of the latest SMT mounters can achieve mounting speeds of tens of thousands of times per hour, which provides great convenience for mass production and effectively reduces production costs. Furthermore, SMT technology has also achieved significant results in enhancing the durability and environmental adaptability of IoT equipment.

SMT-supported designs allow equipment to operate in high temperatures, humidity and other extreme environments, such as sensors and monitoring equipment in industrial applications. This means that manufacturers can design more reliable products that meet the high requirements for durability and stability in different industries. These advantages not only help companies gain competitive advantages in the market, but also promote the innovative design of IoT devices and lay a solid foundation for future technological development. As SMT technology further matures, its value in IoT applications is expected to continue to rise.

To conclude, in the future, with the continuous advancement of Internet of Things technology, SMT will face more complex challenges. On the one hand, the design of IoT devices is evolving towards higher integrated functions and miniaturization, which means that SMT needs to continue to upgrade its packaging capabilities for multi-function chips. According to a report from a market research organization, by 2029, the IoT equipment market is expected to reach more than 880 billion of dollar, which poses a new high challenge to the technical requirements of SMT. In addition, finding a balance between high performance and low power consumption is also a major challenge in the future. With the increasing demand for low-power designs, how to maintain the endurance of the device while meeting computing performance will be a difficult task. In the future, the energy benefits faced by IoT devices will become one of the main evaluation indicators. At the same time, the rise of AIoT (AI + IoT) has also brought new opportunities and challenges to SMT. How to effectively integrate AI chips and machine learning algorithms into SMT devices to improve intelligent computing capabilities is one of the future development directions of SMT technology.

In contrast, AI for defect detection, yield optimization, supply chain prediction and other applications in SMT production lines will become the key to whether companies can remain competitive in the market. In general, the future application of SMT technology in the IoT field will be full of challenges and opportunities. Only by continuous innovation and technology research and development can we meet higher demand and market competition.
