NX-E6LP automatisch inline röntgeninspectiesysteem

NX-E6LP | Automatic Inline X-ray Inspection System

Name: NX-E6LP | Automatic Inline X-ray Inspection System - Nectec
Price: 9999.00 USD
Availability: InStock

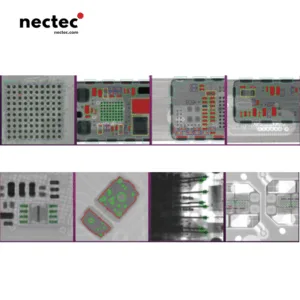

The X-Ray machine NX-E6LP is used for detecting BGA and chip compon-ents; Nickel plate detection of metal plate andFPC welding parts, calculation of bubble perc.entage, size, area measurement, analysis ofinternal defects such as low tin and virtual soldering in products.The advanced inspection equipment is specifically designed for detecting BGA and chip components, nickel plate detection on metal plates, and FPC welding parts. It efficiently calculates bubble percentages, measures size and area, and analyzes internal defects such as low tin and virtual soldering in products.

Categorie: PCB BGA Xray

Beschrijving

Beschrijving

Functies en kenmerken

Orbital Online Inspection: Provides continuous, real-time inspection for seamless quality control.

Automatic Detection and Analysis: Automatically detects and analyzes components for OK & NG classification, ensuring high accuracy.

Systeemintegratie: Supports customized access to MES and ERP systems for streamlined data management.

Precisieregeling: Features CNC programming for automatic positioning, ensuring precise and reliable inspection.

Comprehensive Data Management: Includes a rework database management system that supports the review and generation of detailed data reports.

specificatie

Röntgenbuis	Buisstijl	Seal Tube
	Buisspanning	130KV
	Buisstroom	320uA
	Details Resolutie	2um
	Koelmodus	Luchtkoeling
	Geometrie Vergroting Tijd	300 Times
Flat Panel Detector	Pixelgrootte	85um
	Pixel Matrix	1536*1536
	Effectief beeldvormingsgebied	130*130
	FPS Speed	20
	A/D Conversion Digits	16bit
Sample table	Sample Table Area	Diameter 500mm
	As X	500 mm
	As Y	500 mm
	Axis Z1	300 mm
	Axis Z2	300 mm
	Axis Q	Tilt70°
	As R	The Sample Table Rotates horizontally360°
Electrical control	Control mode	Image automatic navigation function, point to go there to go there, the whole keyboard, mouse operation positioning
Electrical control	Programming mode	Teaching function, CNC automatic positioning
X-Ray Housing	Maat	About 145013601600mm
X-Ray Housing	Gewicht	About 1600 kg
Stroom	Power supply	AC110-230VAC, 50/60Hz
