New Trends in SMT Assembly in 2025: How High Precision and Intelligence Can Improve Yield Rates.

By 2025, the SMT assembly industry will be accelerating its transition toward high precision and intelligence. Through technological innovation and production model upgrades, product yield rates will be significantly improved. We will analyze the core trends of SMT and the path to improving yield rates from the two dimensions of high precision and intelligence.

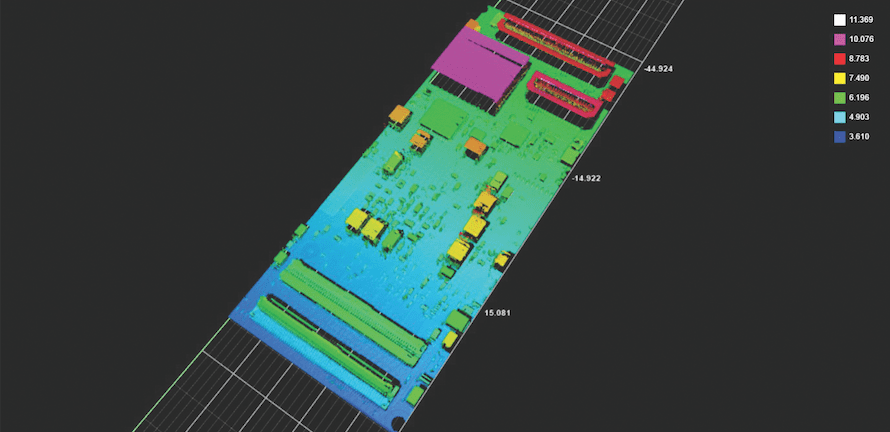

First, we want to discuss high-precision technology upgrade, how it is breaking through physical limits and consolidating the foundation of yield. There are three categories that we like to focus on. First is mounting accuracy exceeds micron level: now, the resolution of the surface mount technology (SMT) machine has reached 0.0024 degrees per pulse, achieving a component position deviation of no more than ±0.035mm. At Nectec, our NT-T5 pick and place machine can perfectly reach this goal. It can precisely mount 01005 chips (0.4mm×0.2mm) and tiny wafer-level packages. The surface mount pressure control accuracy reaches ±0.1N, preventing component damage or false soldering. It is particularly suitable for the mounting of flexible circuit boards and irregular components; Second is comprehensive 3D inspection technology: currently, 3D SPI (solder paste inspection) combined with 3D AOI (automatic optical inspection) and AI algorithms can identify solder joint defects smaller than 0.3 mm², with a detection speed of up to 120 cm²/second.

In addition, Nectec‘s X-ray transmission inspection technology has broken through the bottleneck of blind and buried hole inspection in multilayer boards, with a defect detection rate of ≥99.5%; Third is collaborative optimization of materials and processes: currently, the application of new low-temperature solder (melting point 138°C) and nano-silver paste reduces the risk of component cracking caused by thermal stress. In addition, the laser cutting accuracy of the steel mesh reaches ±5μm, which, combined with a stepped steel mesh design, achieves a solder paste printing yield of >98% for components with a fine pitch of 0.08mm.

Second, we want to discuss the intelligent manufacturing revolution, how data-driven decision making and the reconstruction of quality control systems have changed this progression. There are three aspects we can focus on. First is AI vision system and adaptive learning: currently, deep learning algorithms analyze 2000+ dimensional inspection data in real time and automatically optimize placement parameters, such as compensating for offset caused by PCB warping. The intelligent defect classification system (ADC) improves manual re-judgment efficiency by 10 times. After using Nectec’s SMT placement machine AI optimization algorithm, Nectec customers’ misjudgment rate dropped from 15% to 2%; Second is digital twins and virtual commissioning: what it does is it uses the MES system to build a digital twin model of the production process to predict capacity bottlenecks and adjust equipment parameters in advance.

As a direct result, virtual debugging technology has reduced the time required to introduce new models by 40% and increased the first-time production yield to over 95%; Third is full process traceability and intelligent early warning: what it does is it uses blockchain technology to store material, equipment, and personnel data in a tamper-proof manner, reducing problem tracing time from 24 hours to 2 minutes. In addition, a predictive maintenance system monitors equipment status through sensor data, reducing downtime by 60% and avoiding batch defects caused by equipment failure.

Third, we want to discuss the concept of high precision and intelligent integration. To get started, closed-loop quality control system is important. The reason is because detection data is fed back to the placement machine in real time, dynamically adjusting the placement speed and pressure. For example, when a deviation in the coplanarity of the leads of a batch of components is detected, the system automatically reduces the placement speed by 20% to ensure soldering quality. Next, flexible production model is the new trend. The reason is because intelligent warehousing and AGV carts enable line changes in two hours, supporting mixed production of small batch orders of multiple varieties. Nectec’s customers have reduced line change losses from 300 pieces per change to 50 pieces per change. Lastly, green manufacturing and cost optimization should be considered. The reason is because the intelligent energy consumption management system reduces energy consumption per unit of output by 15% and reduces solder paste waste by 30% through precise solder paste printing, resulting in an overall cost reduction of 8%.

Fourth, we would like to give some brief introduction to our SMT pick and place machines. First, let‘s introduce Nectec‘s NT-B5 high-speed pick-and-place machine. This machine is equipped with new sensor technology, achieving a pick-and-place speed of 82,000 CPH for large PCB boards. Thanks to Nectec‘s high-quality factory supply chain, the mass production cycle for new products can be shortened by 50%. Next is the Nectec NT-P5 high-speed pick-and-place machine, which is equipped with a high-speed placement head, increasing placement speed by 50% and expanding the size of components that can be placed by four times, with a defect rate below 10 PPM Finally, the Nectec NT-T5 ultra-high-speed placement machine is introduced. This machine is equipped with a dual-arm 20-head configuration flying camera, achieving a placement speed of 84,000 CPH. After integration with the MES system, material wastage rates have been reduced from 3% to 0.9%.

To conclude, With the penetration of 5G-A and IoT technologies, SMT chip processing will develop in the direction of ultra-precision, zero defects, and adaptability. The deep integration of high precision and intelligence will not only push the yield rate beyond the critical point of 99%, but also reshape the competitive landscape of electronic manufacturing.

Enterprises need to build insurmountable quality barriers through technological iteration and data asset accumulation.
